IX 2 - 700

Intracellular Preamplifier

Dagan





The IX2-700 is a dual channel microelectrode preamplifier designed to serve a wide variety of applications including: Single and Two Channel intracellular recording; Single and Two Channel extracellular recording; Ion-Selective Electrode Amplifier; Teaching application requiring ease of use.

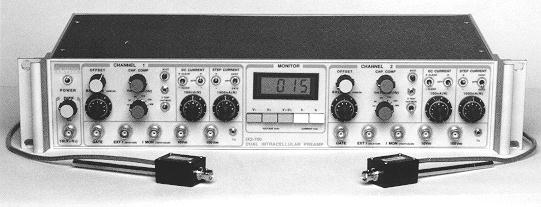

The IX2-700 is a complete instrument with DC and pulsed current passing capability, filtering, electrode
impedance testing, and a back-lit (for dark labs) LCD voltage and current meter.



Specifications
Headstage: 3.7cm  x 2.9cm x 2.3cm   (Two Headstage included with IX2-700)  Standard Headstage: N=.1 for 20 to 500 MW  electrode.

Current Multiplier N   I max  RE
(Feedback resistor)
Noise
RMS/BW/Re
Electrode Resistance Range Cp Input Resistance
10 10µA 1MW

25µV; 10kHz; 1MW

.2 to 5MW 20pF 1010W
1 1µA 10MW 50µV; 10kHz; 10MW 2 to 50MW 10pF 1011W
.1 (Standard) 100nA 100MW 50µV; 1kHz; 100MW 20 to 500MW 10pF 1012W
.01 10nA 1GW 40µV; 100Hz; 1GW 200 to 5000MW 20pF 1013W
.001 1nA 10GW 35µV; 10Hz; 10GW 2 to 50GW 20pF 1014W



Filter Response:     Switch selectable DC to 1kHz, 3kHz,
                             5kHz, 10kHz, 30kHz and Wide Band
Input Bias Current:  1 x 10-12 A (Adjustable to zero)
Rise Time to Pulse: Typically 10 ms into 10 M
W resistor
                              (10 To 90%), 50 ms into 100 M
W
Voltage Gain:         x10
Output Impedance: 500W all outputs
Offset Voltage:       ±200mV
Balance Reading:   0 to 100 MW  divided by headstage
                            scaling N (10 turn digital dial)
Electrode Impedance Test: 1mV per MW  squarewave (N)
Digital Polarization Current Range: 0 to ±100 nA
        (10 turn digital dial) scaled by headstage multiplier N
Gated Stimulus Current: +2 volt to +20 volt level turns on
                                     programmed stimulus step (0 to +l000nA)

Monitor: 1999 mV meter displays channel 1 and 2

voltage and current and channel 1 minus 2 voltage
                 (decimal point is automatically set)
Cross Capacitance Control (Cx): For ion selective electrode
                  balancing
External Current Input BNC: 20nA/V scaled by the
headstage
                   multiplier
Size:         3 1/2 inch by 19 inch rack
Power:      115/230VAC 50/60Hz
Electrode Holders: Low noise polycarbonate in two sizes:
                   HB120 for glass 1.0 to 1.2mm O.D.;
                   HB180 for  glass 1.5 to 1.8 mm 0.D. (order separately)
Extracellular Recording: 8024-15 Extracellular  Headstage
                   (AC coupled, voltage gain = 1000)  (order separately)
Optional:   7001 Spare Headstage (Specify N)
