The
EPMS-07 is a modular system for measuring and/or
processing of bioelectrical signals in
electrophysiology and the application of substances in
pharmacology.

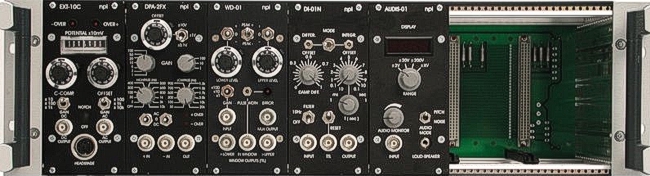

The system is housed in a 19" rackmount cabinet
(3U) containing a power supply and has room for up to
7 plug-in units depending on the width of a module.
Modules can have a width of 1, 1.5, 2 or 3. The width
of the modules in detail is given in the
"Options" field for each module. The sum for
one 19" cabinet must not exceed seven.
The plug-in units are connected to mains by a bus at
the rear panel.
Specification
POWER
REQUIREMENTS:
115/230 V AC, 60/50 Hz, fuse 0.8/0.4 A, slow,
45-60 W (depending on the modules plugged in)
|
DIMENSIONS:
19" rackmount cabinet, 3U high (1U = 1
3/4" = 44.45 mm).
|
|
|
Intracellular Amplifier
Module
÷ BRAMP-01R -
Bridge Amplifier
Extracellular
Amplifier
Modules
÷
EXT-10C
- Fast Amplifier
÷
EXT
10-2F - Amplifier/Filter
÷
EXT-08
- 8-Channel Amplifier
÷
EXT-16
- 16-Channel System
Clamp
Amplifier Modules
÷
SEC-03M
- Clamp Amplifier
÷
HVC-03M
- High Voltage Clamp
Multifunction
Amplifier
Modules
÷
ELC-03M
- Amplifier
for loose-patch, extracellular and
intracellular recordings
|
Pre-Amplifier
Modules
÷
PA-01GX -
Single channel amplifier
÷
PA-2S
- Dual channel amplifier
Drug Application
Modules
÷
MVCS
/ MVCC - Iontophoretic Drug Ejection
÷
PDES -
Pneumatic Drug Ejection
÷
HV-TR150
- Tracer
Injection
Voltameter-Amperometer Module
÷
VA-10M
Signal Processing/ Filter
Modules
÷
BF-48DGX
- Low pass Bessel Filter with gain
÷
LPBF-01GX
- Low pass Bessel Filter with gain
÷
DPA
2FX/FS - Single-Pole Filters
|
Stimulus Isolator Module
÷
ISO-STIM
01M - Stimulus Isolator
Audio
Module
÷
AUDIS-03M
- Audio Monitor with THRESHOLD function
Timer
Module
÷
TMR-02M
- Timer Module
Penetration Module
÷
PEN-03
- Penetration Module
Electrode Resistance
Measurement Module
÷
RES-06
- Electrode Resistance Measurement Module
|
