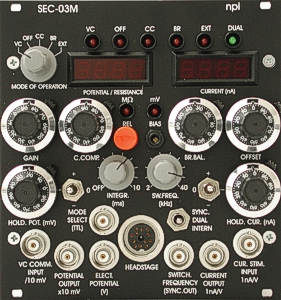

The
SEC-03M
is a switched mode single electrode voltage and
current clamp amplifier module for
recordings with sharp microelectrodes or suction
(patch) pipettes.
Now it is possible to combine up to three SEC
amplifiers in one 19 inch housing for investigating
coupled cells.
Or combine an SEC-03M with a PEN-03M module for easy
cell penetration or with a HVC-03M module to get a
single and a two-electrode voltage-clamp system in one
EPMS-housing.
SEC amplifiers are also available as 19"
stand-alone devices.
Specification |

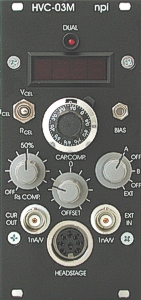

The
HVC-03M
high voltage clamp module is designed for current
injection into cells.
It extends one or two SEC-03M modules so that
two-electrode voltage clamp experiments using high
voltages can be performed. It features OFFSET
cancellation, capacity compensation of the electrode
capacity, an electrode resistance measurement unit and
correction for BIAS current.
The HVC-03M can also be operated as a module for
iontophoresis using an external control signal. Please
contact Science Products GmbH for details.
IMPORTANT:
The EPMS-H-07 housing is required to operate this
module!!!
Specification
|
