The

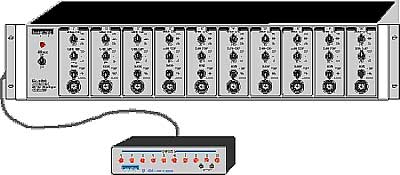

EX 1000 Extracellular Amplifier is ideal for all
non-human applications that require multiple channel
AC amplification. Each channel is totally independent
with variable Gains, High Cut and Low Cut Filters.
Inputs for all 10 channels are through a single high
impedance headstage.
Features
Designed for very low noise applications
+10Voutput
range
+100mV
Input range, +1Volt DC
3 selectable ranges each for: Gain, High Cut, and Low
Cut filtering
10 channel small
sized high impedance headstage (10ft cable)
External line
operated power supply
|

|
|
Input
Connector Mini
Pin Jack (mating pins provided) Output
Connector
BNC
Input Impedance 1000
gigohm
Output Impedance 560
ohm Input
Range
+100mV:
DC: +1V
Output Range
±10V Gain
x100,
x1,000, x10,000
Filter (Hz)
Active
20 dB/decade Low
Cut
1,
10, 300 (other cutoff frequencies available)
High Cut
300,
3k, 10k (other cutoff frequencies available)
Power
Includes PS-1 External Power Supply 115V
or 230VAC
Size
Mainframe
3.5" x 19" Rack Mount,
Headstage 1.6" high x 5.5" wide
x 6"
deep |
Noise
| Source
Resistance |
Shorted
Input |
100kOhm |
1MOhm |
10MOhm |
| Bandwidth |
RMS |
p-p |
RMS |
p-p |
RMS |
p-p |
RMS |
p-p |
| 1Hz- 100Hz |
0.3µV |
1.5µV |
0.55µV |
2.75µV |
1.6µV |
8.0µV |
5.0µV |
25µV |
| 1Hz- 1kHz |
0.7µV |
3.5µV |
1.6µV |
8.0µV |
4.7µV |
23.5µV |
14µV |
70µV |
| 1Hz- 10kHz |
1.6µV |
8.0µV |
3.9µV |
19.5µV |
11µV |
55µV |
25µV |
125µV |
|
